Waveform Tomography Code
OBJECTIVE:
Adjust waveform tomography code and apply
to synthetic reflection data.
PROCEDURE:
-
Load testnew.m
and all related subroutines in same directory.
Subroutines are
plot1.m,
plot2.m,
synforw.m,
plot4.m,
indata.m,
CSG.m,
backsyn.m, and
synback.m.

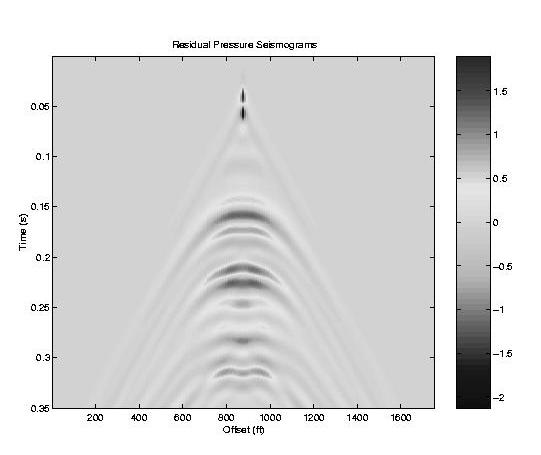

- Type testnew.m in MATLAB and see waveform inversion results.
- Adjust code so it is a conjugate gardient code.
Rerun simulations, but reset every 5 iterations. Compare preconditioned steepest
descent and CG performance.
- (Schuster's Students only) Implement preconditioning factor. Compare convergence.
with CG vs steepest descent.
- Rerun for many shot gathers. Do the results improve?

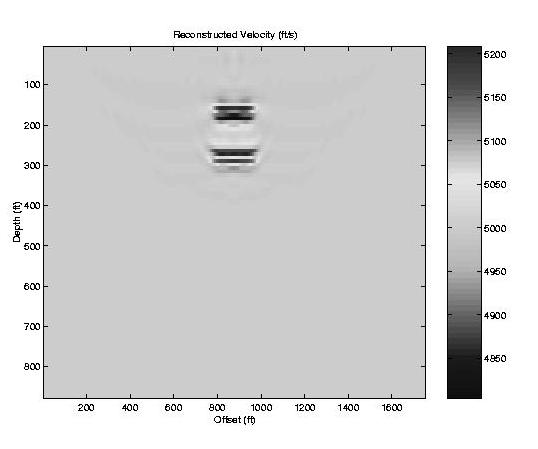

- Why is the low wavenumber part of the model not reconstructed
(i.e., only the top and bottom reflectors
are reconstructed)?
What are some of the procedures for reconstructing
the missing low-wavenumber part of the model?
- Why are the sides of the model not reconstructed?
